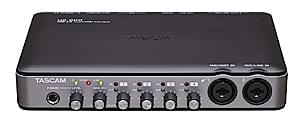

The US-600 is a USB 2.0 Audio/MIDI interface with six inputs and four outputs and the perfect choice for multi-track recording with your computer. All input channels can be captured at up to 96-kHz/24-bit audio resolution. Four high-definition XLR microphone inputs include phantom power for detailed recording with condenser microphones. Each input uses an XLR/TRS combo jack to support microphone or line level sources and includes a signal/clip LED to help you set your input level. Input 1 can be switched to instrument-level for direct recording of guitar or bass, and a direct monitor path allows musicians to hear their performance without a delay from the computer. On the rear panel, the US-600 includes a pair of unbalanced outputs, MIDI input and output and a stereo SPDIF digital in and out.
The US-600 comes with a copy of Cubase LE 5 – the latest version of Steinberg’s 48-track workstation software. VST plug-in support, automated mixing and MIDI tracks allow you to craft large productions. If you want to use your own software, the US-200 supports most Mac and Windows audio applications such as Logic Pro, Live, Nuendo, Digital Performer, Fruity Loops, Pro Tools 9 and more.
Main Features
- Provides 6 audio inputs, 4 audio outputs (two analogue, two digital) plus one MIDI input/output for a Windows or Macintosh computer
- Ideal for high-quality multi-track home or mobile recording
- Full 24-bit/96-kHz recording without reduction of inputs/outputs
- Zero-latency analogue direct monitoring
- 4 analogue audio inputs with high-quality microphone preamps and switchable phantom power
- Stereo SPDIF digital input (coaxial)
- One input switchable to instrument level for direct connection of a guitar or bass
- XLR/TRS combo connectors (balanced) on each analogue input
- Line inputs 1/2 and 3/4 each switchable to mono
- Signal and overload indicators on each input channel
- 2 analogue outputs on RCA connectors (unbalanced)
- Stereo SPDIF digital output (coaxial)
- Level control for headphones and line output
- Monitor mix level control for headphones and line output
- USB 2.0 equipped
- Powered by AC adapter Tascam PS-P520 (included)
- Cubase LE 5 included
Specifications
| AD/DA audio converters | ||
|---|---|---|
| Sample rate | 44.1/48/88.2/96 kHz | |
| Quantization | 24-bit | |
| Analogue audio inputs and outputs | ||
|---|---|---|
| Microphone inputs (MIC IN 1-4, balanced) | XLR-3-31 | |
| Input impedance | 2.2 kOhm | |
| Nominal input level | –14 dBu (0.15 Vrms) | |
| Minimum input level | –57 dBu (0.001 Vrms) | |
| Maximum input level | +2 dBu (0.98 Vrms) | |
| Line inputs (LINE IN 1-4, balanced) | 6.3-mm TRS jack | |
| Input impedance | 15 kOhm | |
| Nominal input level | +4 dBu (1.23 Vrms) | |
| Minimum input level | –39 dBu (0.008 Vrms) | |
| Maximum input level | +20 dBu (7.75 Vrms) | |
| Instrument input (INST IN 1, unbalanced) | 6.3-mm jack | |
| Input impedance | 1 MOhm | |
| Nominal input level | –13 dBV (0.22 Vrms) | |
| Minimum input level | –56 dBV (0.001 Vrms) | |
| Maximum input level | +3 dBV (1.41 Vrms) | |
| Line outputs (LINE OUT 1-2, unbalanced) | RCA | |
| Output impedance | 200 Ohm | |
| Nominal output level | –10 dBV (0.316 Vrms) | |
| Maximum output level | +6 dBV (2 Vrms) | |
| Headphones output (PHONES) | 6.3-mm (1/4") stereo phone jack | |
| Maximum output power | 49 mW + 49 mW (1 kHz, THD 0.1 %, 32 Ohm) | |
| Digital audio input and output | ||
|---|---|---|
| Stereo digital input (coaxial) | RCA | |
| Format | IEC60958-3 (SPDIF) | |
| Stereo digital output (coaxial) | RCA | |
| Format | IEC60958-3 (SPDIF) | |
| Other inputs and outputs | ||
|---|---|---|
| MIDI input (MIDI IN) | 5-pin DIN connector | |
| Format | Standard MIDI format | |
| MIDI output (MIDI OUT) | 5-pin DIN connector | |
| Format | Standard MIDI format | |
| USB | 4-pin USB type B | |
| Format | USB2.0 High speed (480 Mbit/s) | |
| Audio performance | ||
|---|---|---|
| Frequency response | 20 Hz-20 kHz +0.5/–1.0 dB (44.1/48 kHz, JEITA) 20 Hz-40 kHz +0.5/–1.5 dB (88.2/96 kHz, JEITA) |
|
| Signal-to-noise ratio | ≥98 dB (LINE IN to LINE OUT with Gain knobs at minimum, 44.1 kHz, JEITA) |
|
| Total harmonic distortion | ≤0.0045 % (LINE IN to LINE OUT with Gain knobs at minimum, JEITA) |
|
| Channel separation | >95 dB (LINE IN to LINE OUT, 1 kHz, +20 dBu) | |
| System requirements | ||
|---|---|---|
| Windows | ||
| Operating systems | Windows XP, 32 bit, SP3 or later Windows XP, 64 bit, SP2 or later Windows Vista, 32 bit or 64 bit, SP2 or later Windows 7, 32 bit or 64 bit |
|
| Computer systems | Windows compatible computer with a USB 2.0 port | |
| CPU/clock | Pentium 4, 1 GHz or faster AMD Athlon, 1 GHz or faster or equivalent processor |
|
| Memory | 1 GB or more | |
| Protocols | ASIO 2, WDM (MME) | |
| Macintosh | ||
| Supported operating systems | Mac OS X 10.5.8 or later Mac OS X 10.6.3 or later |
|
| Supported computer systems | Apple Macintosh series equipped with a USB port as standard equipment | |
| CPU/clock | Intel processor or PowerPC G4, 1 GHz or faster | |
| Memory | 1 GB or more | |
| Protocols | CoreAudio, CoreMIDI | |
| Power requirements and other specifications | ||
|---|---|---|
| Power supply | AC adapter Tascam PS-P520 (included) | |
| Power consumption | 4 W | |
| External dimensions (W x H x D) | 222 mm x 41 mm x 151 mm (without projections) 222 mm x 44 mm x 165 mm (with projections) |
|
| Weight | 0.58 kg | |
| Operating temperature range | 5–35 °C | |
| Bundled software | Cubase LE 5 (for Windows or Mac OS X) | |
Design and specifications subject to change without notice.
