CD-400UDAB
Media Player with Tuner and Bluetooth Receiver
Play from many sources with only one device
Background Music in Perfection
The CD-400UDAB is a compact-sized, rack-mountable and remote-controllable media player that can play tracks from CDs, USB memory devices, SD cards and Bluetooth devices. It also includes an FM/DAB+ tuner with 20 presets and a front-panel mini-jack input to connect portable music players. The tuner has its own output enabling the user to supply two rooms with different music signals, for example. This all-in-one CD player is suitable for a wide range of applications, from background music in touring, restaurants or small stores to use in public facilities.
Play files from CDs, USB memory devices and SD cards
The CD-400UDAB is ideal for contractors where playback of a wide range of media and file formats is required. You can play audio CDs as well as audio files in WAV, MP3, AAC and WMA format stored on data CDs, USB memory devices or SD/SDHC cards. Playback modes (continuous, single and random) can also be combined with repeat playback to suit a wide range of situations.
Wireless playback from Bluetooth® devices
Audio files can also be played from Bluetooth devices such as smartphones, tablets and portable music players. After a device has been connected for the first time, a wireless connection can be made quickly by simply pressing the pairing button. This enables easy playback of audio files without fussing with cables or file formats.
FM/DAB+ tuner to play your favourite radio stations
The CD-400UDAB includes an FM/DAB+ tuner with 20 FM and DAB+ presets each. An independent tuner output allows simultaneous playback with other media to supply different rooms, for example.
Balanced and unbalanced analogue outputs
The CD-400UDAB offers professional balanced outputs on XLR connectors apart from consumer unbalanced outputs on RCA connectors. By providing much better signal-to-noise ratio, balanced connections are indispensable when routing output signals over longer distances like in fixed installations.
Remote control via RS-232C and Ethernet

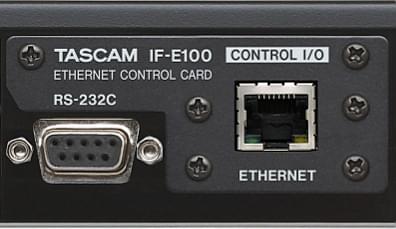

This player includes an RS-232C serial connector for remote control by a media controller, for example. An Ethernet card (IF-E100) is available as an option to allow remote control through a network.
Q-SYS Control (integration under development)
Currently under development, this plugin will integrate the CD-400U DAB with the Q-SYS Platform using the optional Tascam IF-E100 Ethernet card. This will allow full playback control to be accessed directly from the Q-SYS user control interface.
Transport functions, source selection and file navigation can be accessed through Q-SYS without touching the hardware, thus streamlining operations in commercial AV environments such as conference centres, hospitality spaces and houses of worship. The official Tascam plugin will be available via the Q-SYS Designer software.
Details
External input connector for other sources
A stereo mini AUX IN connector on the front panel enables the CD-400UDAB to play audio from portable …
Dubbing from CD or tuner to USB memory or SD card
Audio from an audio CD or from the tuner can be dubbed to an SD/SDHC card or USB memory device …
Locate to the beginning of the next track with Incremental Play
When the incremental play function is enabled, you can skip to the beginning of the next track …
Videos
Features at a glance
- Ultra-compact, rack-mountable media player with DAB+/FM tuner and Bluetooth receiver
- Multiple playback sources:
- Audio CD playback
- MP3 and WMA file playback from CD
- Audio file playback from SD and USB memory (MP3, AAC, WAV, WMA)
- DAB+/FM radio playback (can be output from the main or separate output connectors)
- Playback via Bluetooth connection with a smartphone or computer
- Playback from other audio sources via AUX IN connector
- CD standards supported: CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)
- Slot-loading CD drive mechanism
- Numeric keys for direct track selection
- Playback modes include Continuous, Single, Random
- Repeat playback (All, Single, A–B)
- Incremental play (skip to each next track by pressing the PLAY button; available for CD, USB, SD)
- Resume function (start playback from the track where the unit was last stopped)
- Folder playback with SD and USB memory
- Dubbing from CD or tuner to SD or USB memory (MP3 format)
- Time display (track elapsed / track remain / total elapsed / total remain)
- Power-on play (timer function)
- Lock function to avoid accidental operation
- Anti-shock memory
- XLR balanced analogue output (main)
- RCA unbalanced analogue output (main)
- RCA unbalanced analogue output (tuner)
- Remote control via RS-232C serial connector (D-sub 9-pin)
- Optional Ethernet interface card (IF-E100) available for external control over a network
- Q-SYS platform compatibility allowing full playback control (under development, optional IF-E100 required)
- Headphones output with dedicated volume control
- Backlit LC display
- Wireless remote control included
- Included accessory: Removable mains power cable, RC-CD400 wireless remote control, rack-mounting screw kit, FM antenna, owner’s manual with warranty
Specifications
| General | |
|---|---|
| Supported media | |
| USB memory | 512 MB – 64 GB |
| SD card | 512 MB – 2 GB |
| SDHC card | 4–32 GB |
| CD | CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only) |
| Supported file systems | FAT16, FAT32 |
| Supported file formats | |
| CD-DA | 44.1 kHz, 16 bit |
| MP3 | 44.1 / 48 kHz, 32–320 kbit/s and VBR (MPEG1/2 Audio Layer 3) |
| WAV (USB/SD only) | 44.1/48 kHz, 16 bit |
| WMA | 44.1/48 kHz, 32–320 kbit/s and VBR (WMA v9 standard, DRM not supported) |
| AAC (USB/SD only) | 44.1/48 kHz, 8–320 kbit/s and VBR (MPEG4 AAC-LC audio stream) |
| Number of audio channels | 2 channels (stereo), 1 channel (mono) |
| Recording file format | MP3 (44.1 kHz, 96/128/192/320 kbit/s) |
| Bluetooth receiver | |
|---|---|
| Bluetooth version | v4.2 |
| Output class | Class 2 |
| Supported profiles | A2DP, AVRCP |
| Supported A2DP codecs | SBC, AAC, aptX |
| Supported A2DP content protection | SCMS-T |
| Tuner | |
|---|---|
| Frequency range | FM: 87.5–108 MHz DAB: Band III, 174–240 MHz |
| Antenna connector | F-type (female), 50 Ω, unbalanced |
| Analogue audio inputs and outputs | |
|---|---|
| AUX analogue audio input (unbalanced) | 3.5-mm TRS mini-jack |
| Nominal input level | –20 dBV (0.1 Vrms) |
| Maximum input level | –4 dBV (0.63 Vrms) |
| Input impedance | ≥10 kΩ |
| Main analogue audio outputs (balanced) | XLR-3-32 (1: GND, 2: HOT, 3: COLD) |
| Nominal output level | +4 dBu (1.23 Vrms, Output Attenuation: 0 dB) |
| Maximum output level | +20 dBu (7.75 Vrms, Output Attenuation: 0 dB) |
| Output impedance | 100 Ω |
| Main analogue audio outputs (unbalanced) | RCA |
| Nominal output level | –10 dBV (0.316 Vrms, Output Attenuation: 0 dB) |
| Maximum output level | +6 dBV (2.0 Vrms, Output Attenuation: 0 dB) |
| Output impedance | 200 Ω |
| Tuner analogue audio outputs (unbalanced) | RCA |
| Nominal output level | –10 dBV (0.316 Vrms, Output Attenuation: 0 dB) |
| Maximum output level | +6 dBV (2.0 Vrms, Output Attenuation: 0 dB) |
| Output impedance | 200 Ω |
| Headphones output | 6.3 mm stereo jack |
| Maximum output power | ≥20 mW + 20 mW (THD+N ≤0.1 %, 32 Ω load) |
| Control I/O | |
|---|---|
| RS-232C | D-sub 9 pin |
| Audio performance | |
|---|---|
| Frequency response | 20 Hz – 20 kHz, ±1 dB (Fs: 44.1 kHz, 48 kHz, JEITA) |
| Total harmonic distortion | ≤0.005 % (JEITA) |
| S/N ratio | ≥95 dB (JEITA) |
| Dynamic range | ≥90 dB (JEITA) |
| Channel crosstalk | ≥90 dB (JEITA) |
| Power supply and other specifications | |
|---|---|
| Mains power | AC 100–240 V, 50/60 Hz |
| Power consumption | 20 W |
| Overall dimensions (W × H × D) | 483 mm × 47 mm × 296 mm |
| Weight | 3.3 kg |
| Operating temperature range | 5–35 °C |
| Included accessories | Removable mains power cord, wireless remote control (RC-CD400), rack-mounting screw kit, FM antenna, owner’s manual/warranty |
| Optional accessory | IF-E100 Ethernet option card, allows the unit to be controlled over a network (Telnet protocol) |
Design and specifications subject to change without notice.
