The MZ-372 is a rackmount mixer designed for fixed installations in hotels, conference centres, public facilities, theme parks or bars. It offers seven input channels, two pairs of main outputs and a sub output.

Six input channels can be used for microphones or line-level signals from analogue playback sources like media players, tuners or cassette decks, each equipped with gain controls, LED level meters, three-band equalizers and 100-mm faders. Up to three of these channels can be switched to phono to connect record players (turntables). An additional mic input with level control and two-band equalizer on the front side can be used for announcements or speech reinforcement. In this case, the built-in Talkover function can be used to automatically lower the volume of background music according to the mic volume.

Each of the two main outputs has its own level control and stereo LED level meter. An independent sub output with level control and mono/stereo selection can be used to drive an external master recorder or an additional room. And there is a headphones output with level control for pre-fader monitoring of selected input channels and the main output signal.

Details

Many inputs for your playback sources

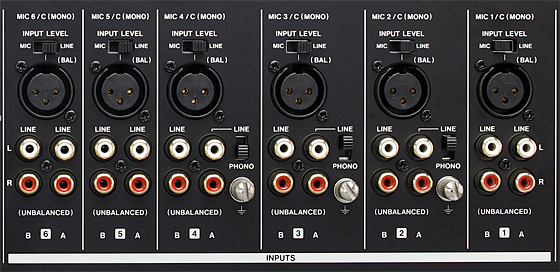

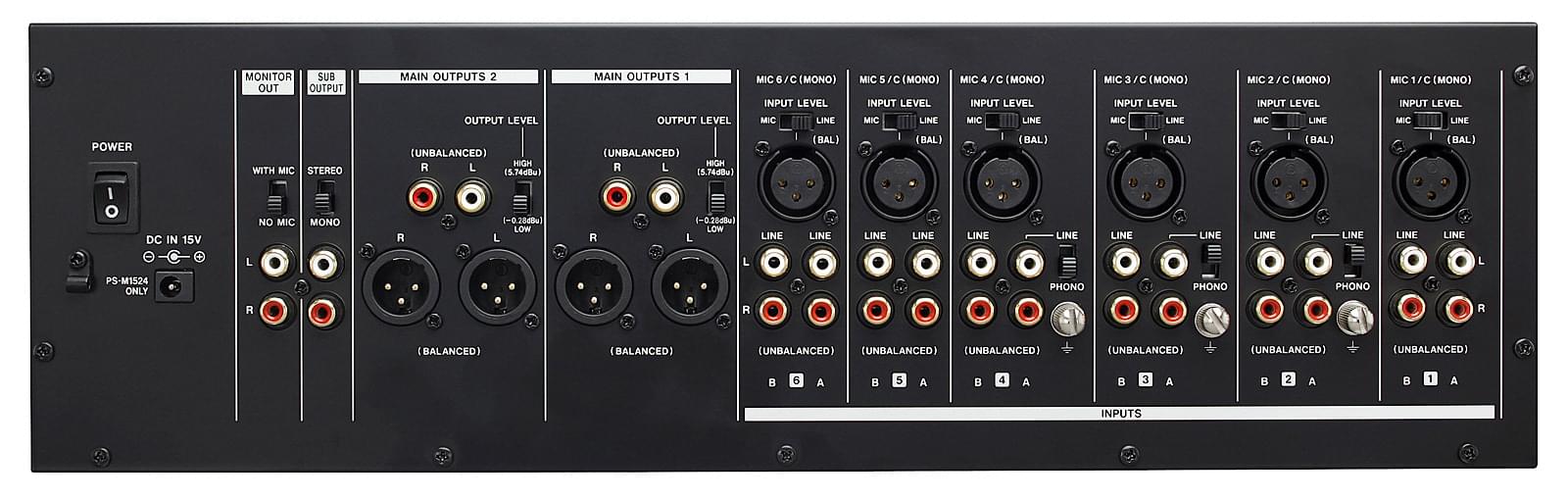

Tascam MZ-372 inputs on rear sideThe MZ-372 allows multiple audio sources to be selected, mixed and routed to two redundant outputs, controlled by familiar volume sliders and assignment buttons. Input signals can be inserted via six audio channels, each offering two sets of unbalanced RCA-type stereo pairs and a balanced XLR connector for a total of twelve sets of RCA-type inputs and six XLR inputs. Tascam MZ-372 front panel mic inputEach set of input connectors can be selected as required by A/B/C switches on the front panel. XLR inputs can also be switched between microphone and line level. In addition, input channels 2, 3 and 4 can be set to accommodate phono-level signals for use with record players.

Located conveniently on the front panel, one additional XLR input is available driving a studio-quality mic preamp and talkover (ducking) circuit for easy voiceover and announcement work.

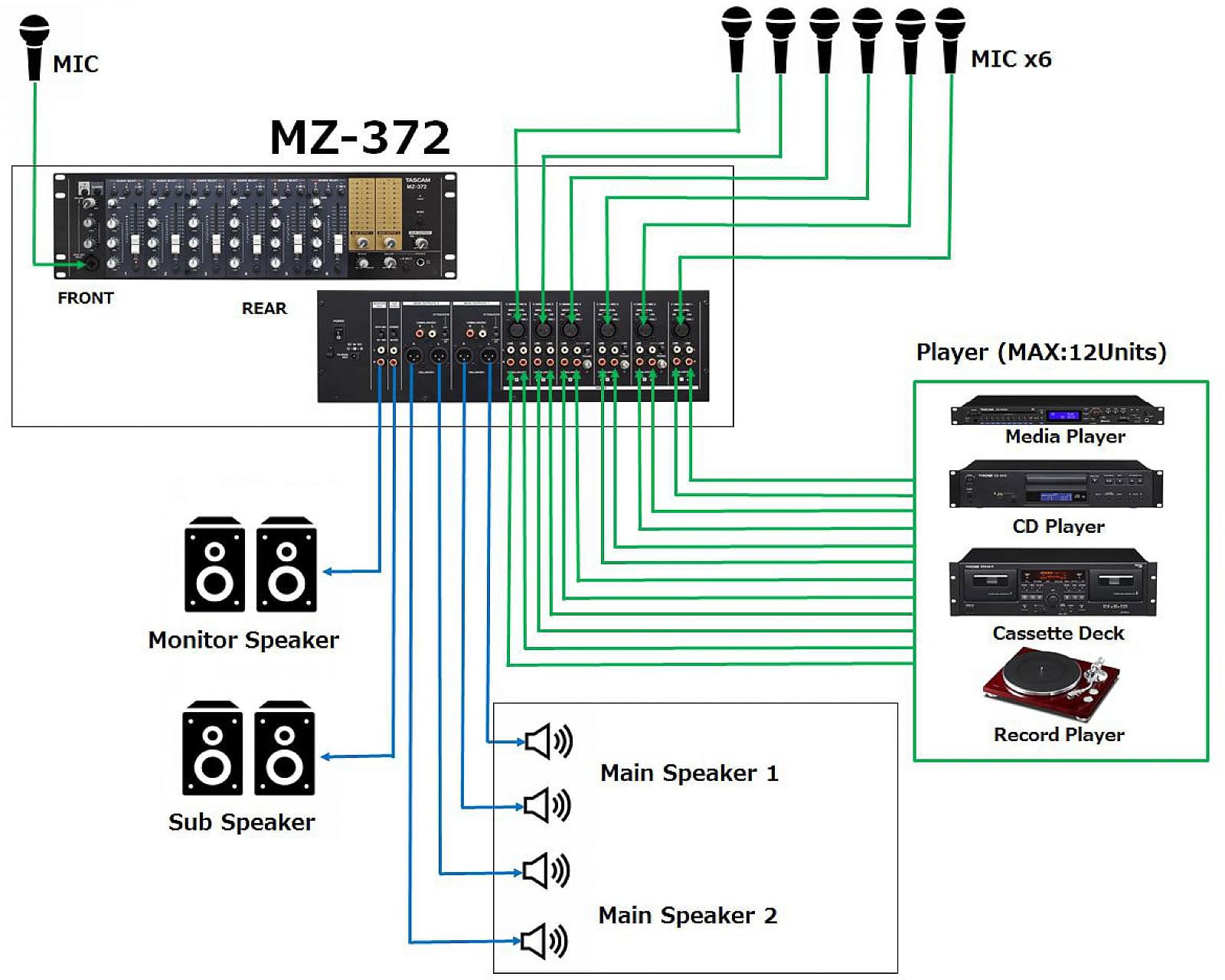

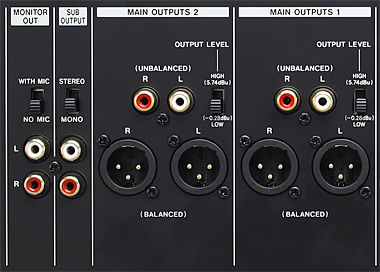

Tascam MZ-372 multiple outputsDual main outputs each feature a combination of XLR balanced and RCA unbalanced connectors for easy integration into virtually any audio system. This flexibility allows combinations of microphones, CD/DVD/Blu-ray players, instruments or any other audio source to be selected and sent simultaneously to all of the outputs, each with its own volume control. The convenient “talkover” function will automatically lower the level of any mixed channel so the user of the microphone connected to the front panel can easily be heard in whichever zones you choose.

There is even a SUB output that can send the mixed signal to an external recorder which makes capturing event or music performances easy. The MONITOR outputs provide another stereo feed with independent control for additional monitoring.

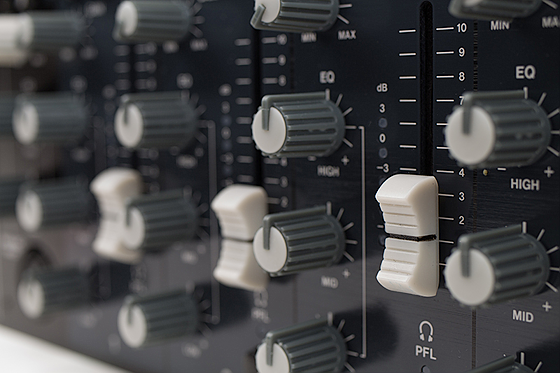

Tascam MZ-372 front panel allows easy, immediate controlThe compact front panel with familiar volume sliders, Gain and EQ knobs, source select buttons, pre-listening buttons and easy-to-read level meters makes the MZ-372 simple and fast to set up and operate.

A headphones output with level control allows pre-fader monitoring of selected input channels and the main output signal. And the main output levels are clearly visible through large 10-segment stereo LED level meters.

Features at a glance

  • Rackmount mixer with seven input channels and two pairs of main outputs
  • Six mic/line input channels are equipped with gain controls, LED level meters, three-band equalizers and faders
  • Each channel can be set to use one of two RCA unbalanced input pairs or an XLR balanced input
  • XLR inputs are switchable between mic and line level
  • Three channels can be switched to phono for record players
  • Independent front mic input with level control and two-band equalizer
  • Talkover function automatically lowers background music volume according to mic volume
  • Two main outputs with level control and stereo LED level meters
  • Sub output with level control and mono/stereo selection
  • Headphones output with level control can be used for pre-fader monitoring of selected input channels and the main output
  • 19-inch rack-mountable size (3U)

Specifications

Audio inputs
Main microphone input Balanced: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Unbalanced: 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
  Input impedance 33 kΩ
  Nominal input level –65 dBu (VOLUME knob at MAX)
–30 dBu (VOLUME knob at MIN)
Mic/Line inputs (balanced) XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Set to Mic
  Maximum input level –30 dBu
  Minimum input level –65 dBu
  Input impedance 33 kΩ
Set to Line
  Nominal input level –1 dBu
  Maximum input level 20 dBu
  Input impedance 22 kΩ
Line inputs (unbalanced) RCA pin jacks
  Nominal input level –10 dBV
  Maximum input level 10 dBV
  Input impedance 22 kΩ
Audio outputs
Main outputs (unbalanced) RCA pin jacks
  Nominal output level –10 dBV
  Maximum output level 6 dBV
  Output impedance 200 Ω
Main outputs (balanced) XLR-3-32 (1: GND, 2: HOT, 3: COLD)
  Nominal output level 4 dBu
  Maximum output level 24 dBu
  Output impedance 200 Ω
Sub outputs RCA pin jacks
  Nominal output level –16 dBV
  Maximum output level 0 dBV
  Output impedance 200 Ω
Monitor outputs RCA pin jacks
  Nominal output level –16 dBV
  Maximum output level 0 dBV
  Output impedance 200 Ω
Headphones output 6.3-mm stereo jack
  Maximum output power 50 mW + 50 mW (into 32 Ω load)
Audio performance
Frequency response 20 Hz – 20 kHz
Distortion ≤0.03%
Crosstalk 65 dB
Power supply and other specifications
Power supply Dedicated AC adapter (PS-M1524)
  Input voltage AC 100–240 V, 50/60 Hz
  Output voltage DC 15 V
  Output current 2.4 A
Power consumption 35 W
Overall dimensions (width × height × depth) 482 mm × 132 mm × 93 mm
Weight 3.2 kg
Permissible operating temperature 5–35 °C

Design and specifications subject to change without notice.
