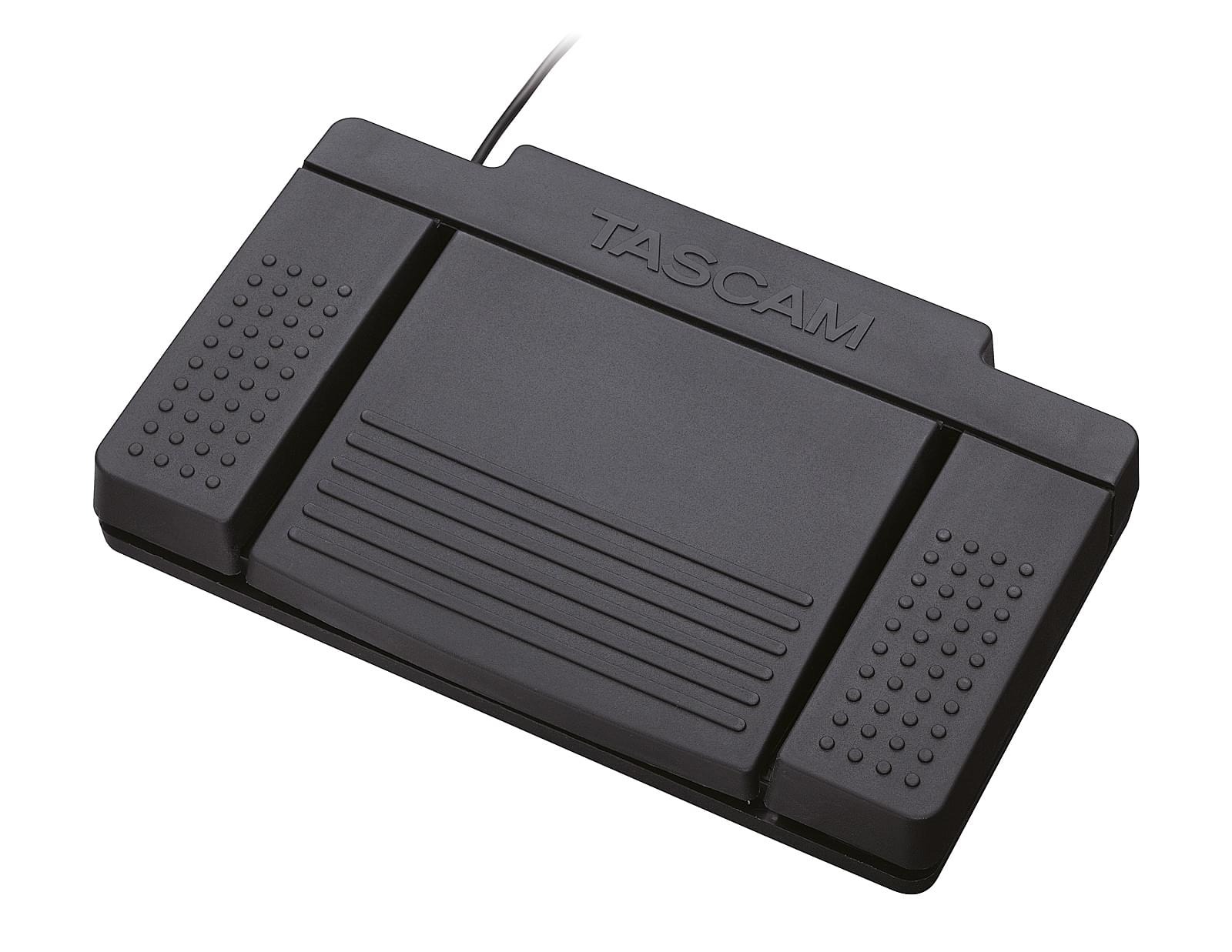

The RC-3F is a 3-pedal footswitch for several Tascam products. The mini jack plugs into the "remote" connector of these products allowing hands-free operation of features like play/pause, looping or punch. For more information, see the user manual of the product in question.

Features at a glance

  • Three-pedals footswitch (left, center, right) for hands-free operation of certain Tascam products
  • Perfect to control transport and trainer functions of GB-10 and LR-10 trainers
  • Function can be set by the controlled unit
  • Battery charge indicator on bottom side
  • 2.5-mm TRS plug with 3.9 m cable
  • Output format: UART signal (9600 bps baud rate, even parity)
  • Power supply by two AA batteries (manganese, alkaline or NiMH rechargeables)
  • Power consumption: 3 mW
  • Dimension (W x H x D): 190 mm x 32 mm x 122 mm
  • Weight: 0.55 kg

Design and specifications subject to change without notice.
