An all-in-one analogue mixer, multi-track digital recorder and audio interface

The Tascam Model 16 all-in-one mixer brings the flagship Model 24’s powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a fully featured compact mixer that combines the warmth of analogue with a digital workflow. The Model 16 is the perfect mixing solution for small-format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless.

With the Model 16, your perfect mix has met its match.

Tascam Model 16 – 14 Inputs for Complete Flexibility

14 Inputs for Complete Flexibility

14 easy-to-access top-panel inputs provide flexible options for microphones, instruments or other audio sources. You can connect up to 10 mics, 14 line signals or two instruments for live recording or mixing. There is also a Bluetooth 5.0 enabled stereo input for a streaming audio device that also provides (selectable) RCA connectors and a stereo mini jack for direct connection of CD player or mobile playback device.

Tascam Ultra HDDA Mic Preamps

Pristine Audio Quality

Mic inputs 1 through 8 deliver pristine audio quality, featuring Tascam’s Ultra-HDDA (High Definition Discrete Architecture) technology for pure, transparent natural tone with ultra-low noise.

Professional Channel Strip Control Features on the Tascam Model 16

Professional Channel Strip Control Features

A tactile Gain knob tops each channel for precise tweaking of input levels. A push-button low-cut filter and three-position input selector (Live/PC/MTR) facilitate quick and easy control of input source signals. A 1-knob inline compressor is available on inputs 1–8 as is a 3-band EQ with sweepable mid range.

Maximum Audio Routing Possibilities and Monitoring on the Tascam Model 16

Maximum Audio Routing Possibilities and Monitoring

Three Aux busses (Monitor 1, Monitor 2 (pre/post) and Effects) and PFL (Pre Fader Listen) round out the Model 16’s pro-level signal path routing options. A Sub group provides an additional pair of stereo line outputs which can be used to drive an additional amplifier, for example.

The three Aux outs let you route audio signals for stage monitoring, or to external gear such as outboard effects, signal processors or headphone mixes. And an additional Control Room output with individual level fader can be used to drive a pair of powered studio monitors.

Powerful Internal 16-Track Multi-track Digital Recorder on the Tascam Model 16

Powerful Internal 16-Track Digital Recorder

The Model 16’s multi-track section features a powerful internal 16-track digital recorder, capturing 14 input signals and the main stereo mix simultaneously to an internal SD card in pristine 48-kHz/24-bit quality. Record anything from live performance to rehearsals, worship events, spoken word and meetings. You can also perform overdubs and punch-in/out quickly and easily. And you can use an optional footswitch for hands-free operation of selected functions.

Recorded tracks can be immediately mixed, mastered or exported to a computer for further editing, formatting and publishing.

Tascam Model 16 With High-Quality Internal Audio Interface

High-Quality Internal Audio Interface

An internal USB audio interface with 16 inputs and 14 outputs captures audio at a sampling rate of 48 kHz and with 24-bit resolution for recording or playing back from an external DAW (Digital Audio Workstation). The new-generation Tascam USB driver allows a minimum size of the audio buffer which can be set to as low as four samples. This results in extremely low latency and the highest level of efficiency when recording audio.

Versatile Input Capability on the Tascam Model 16

Versatile Input Capability

Using the channel Mode switch, each channel can select the input source as needed. This allows a super flexible input configuration to be selected where some inputs can be live, other inputs can play tracks from the internal multi-track recorder, while other inputs can play tracks from a computer via USB, all simultaneously.

16 Editable Multi-Effects on the Tascam Model

16 Editable Multi-Effects

The Model 16’s versatile effects section offers 16 editable and foot-controllable multi-effects, including reverb, delay, chorus, flanger and others. Each effect allows one parameter to be changed using the menu. The selected effect can be mixed to the main stereo output using its dedicated fader and can also be applied to monitor busses 1 and 2.

Four-Band Master EQ on the Tascam Model 16

4-Band Master EQ

A four-band equalizer with two (wide/narrow Q) sweepable mid-bands can be dialed in for crafting the perfect mix. You can assign this EQ to the main outs or monitor 1/2 outs as you like.

Options and Accessories

You can expand your recording and mixing possibilities with optional accessories like the RC-1F Footswitch, AK-RM16 Rack Mount Kit, AK-DC16 Dust Cover, TM-Series microphones, and TH-02 headphones.

Дополнительные аксессуары

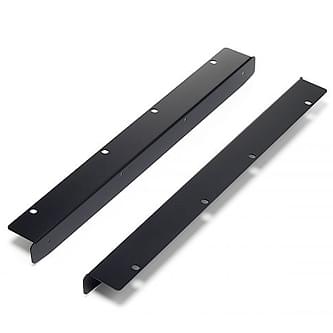

Tascam AK-RM16 | Rack Mount Kit for Model 16
AK-RM16: Rack Mount Kit for Model 16

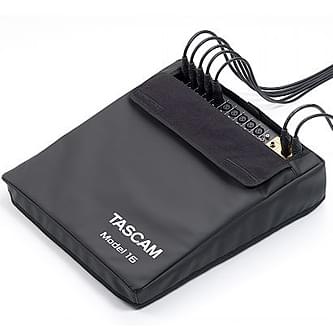

Tascam AK-DC16 | Dust Cover for Model 16
AK-DC16: Dust Cover for Model 16
Tascam RC-1F | Напольный переключатель
RC-1F: Напольный переключатель

Сопутствующие продукты

Tascam Model 24 | 22-Channel Analogue Mixer With 24-Track Digital Recorder
Model 24: 22-Channel Analogue Mixer With 24-Track Digital Recorder
Tascam DP-24SD | Цифровая портастудия
DP-24SD: Цифровая портастудия
Tascam DP-32SD | 32-Track Digital Portastudio
DP-32SD: 32-Track Digital Portastudio

Описание

  • 14-channel analogue mixing console with built-in 16-channel multi-track recorder and USB audio interface

Mixer features

  • 14 analogue inputs
    • 10 Tascam Ultra-HDDA microphone preamps with switchable phantom power (48 V) on eight mono and two stereo channels
    • 12 balanced line inputs (8 mono, 2 stereo)
    • One multi-purpose stereo channel for input from mobile devices via Bluetooth or via RCA connectors or stereo mini-jack connector (CH 13/14)
    • Inserts on input channels 1 and 2
    • Channels 1 and 2 can be used with high-impedance instruments like electric guitars/basses
  • Three Aux outputs (monitor 1 (pre fader), monitor 2 (pre/post fader), effects (post fader))
  • Three stereo outputs with independent master faders (Main, Sub, Control Room)
  • One-knob compressor for channels 1–8
  • Switchable low-cut filter (100 Hz) for eight mono and two stereo channels
  • Switchable Mute, Stereo/Sub routing and PFL on each input channel
  • Three-band equalizer with sweepable mids for eight mono channels, fixed mids on stereo channels
  • Semi-parametric EQ with two sweepable mid bands (wide/narrow) for stereo and sub outputs
  • Built-in Bluetooth receiver for wireless playback
  • On-board effects processor
    • 16 effects types
    • Can be used on all input channels, monitor busses, sub and main stereo bus
    • Can be turned on/off by an optional footswitch (Tascam RC-1F)
  • 60-mm faders on each channel
  • 12-segment LED output level meters
  • XLR balanced outputs for main stereo bus
  • TRS balanced outputs for sub, control room, monitor 1/2 and effects send
  • Headphones output with level control (80 mW per channel)

Recorder features

  • Tascam multi-track recording engine
  • Uses SD cards as recording media (up to 128 GB, Class 10 or higher required)
  • Up to 16 tracks (14 input channels + stereo mix) can be recorded without the need for a computer
  • Recording format: WAV (BWF), 44,1/48 kHz, 16/24 Bit
  • Playback format: WAV (BWF)
  • Overdubbing, punch in/out recording (eight channels maximum)
  • Multi-track playback for advanced live performance
  • Illuminated Play/Record/Stop buttons for better legibility in poorly lit environments

Audio interface features

  • USB 2.0 audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
  • Transfer to computer: 16 channels (all 14 inputs + stereo mix)
  • Transfer from computer: 14 channels, assignable to each channel input
  • Audio resolution 44.1/48 kHz, 16/24 bit

Other features

  • Simple and quick menu operation with multi-jog dial
  • 19-inch rack installation possible (with optional rackmount kit)
  • Internal power supply with removable power cord

Поддерживаемые операционные системы

Windows

  • Windows 10 (May 2019 Update)
  • Windows 8.1
  • Windows 7

Mac

  • macOS Mojave (10.14)
  • macOS High Sierra (10.13)
  • macOS Sierra‎ (10.12)

Спецификации

Recorder
Recording media SD (512 MB – 2 GB)
SDHC (4–32 GB)
SDXC (64–128 GB)
Class 10 or higher required
File system FAT16 (SD), FAT32 (SDHC), exFAT (SDXC)
Recording file format WAV (BWF, maximum file size: 2 GB)
Playback formats WAV (BWF)
Sampling frequency 44.1 kHz, 48 kHz
Bit depth 16 bit, 24 bit
Recordable channels 16 channels max. (14 channels + stereo mix)
Audio inputs and outputs
Microphone inputs (CH 1–8,9,11) XLR-3-31, balanced
(1: GND, 2: HOT, 3: COLD)
  Maximum input level +10 dBu
  Nominal input level –8 dBu
  Minimum input level –58 dBu
  Gain adjustable range 0–50 dB
  Input impedance 1.8 kΩ
LINE inputs (CH 1–8) 6.3-mm TRS phone jack, balanced
  Maximum input level +22 dBu
  Nominal input level +4 dBu
  Gain adjustable range –10 dB to +40 dB (CH 1–8)
–20 dB to +30 dB (CH 9, 11)
  Input impedance 22 kΩ
INSERT (CH 1–2) 6.3-mm TRS phone jack
(Tip: Send, Ring: Return, Sleeve: GND)
  Nominal input level 0 dBu
  Maximum input level +18 dBu
  Input impedance 10 kΩ
  Nominal output level 0 dBu
  Maximum output level +18 dBu
  Output impedance 100 Ω
STEREO inputs (CH 13-14) RCA pin jack, unbalanced
3.5-mm stereo mini jack, unbalanced
  Maximum input level +8 dBV
  Nominal input level –10 dBV
  Input impedance 10 kΩ
MAIN output XLR-3-32, balanced
(1: GND, 2: HOT, 3:COLD)
  Maximum output level +4 dBu
  Nominal output level +22 dBu
  Output impedance 200 Ω
SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT 6.3-mm TRS, balanced
(Tip: HOT, Ring: COLD, Sleeve: GND)
  Nominal output level –2 dBu
  Maximum output level +16 dBu
  Output impedance 200 Ω
PHONES OUT 6.3-mm stereo phone jack
  Maximum output power 80 mW + 80 mW (at 32 Ω)
Channel EQ
  Low cut 100 Hz, –18 dB/Oct.
  High (shelving) 12 kHz, ±15 dB
  Mid (peaking) variable 100 Hz to 8 kHz, ±15 dB (Mono)
fixed 600 Hz, ±15 dB (Stereo)
Q = 0.55
  Low (shelving) 80 Hz, ±15 dB
Master EQ
  High (shelving) 10 kHz, ±15 dB
  Mid (wide) variable 100 Hz to 8 kHz, ±15 dB (Mono), Q = 0.5
  Mid (narrow) variable 100 Hz to 8 kHz, ±15 dB (Mono), Q = 5
Footswitch connector 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended)
Audio performance
Residual output noise –100 dBu
(MAIN OUT, MAIN fader at min.)
Equivalent input noise (EIN) –128 dBu
(Mono input channel at 150 Ω, GAIN at max.)
Total harmonic distortion (THD+N) <0.01 % (MIC IN-> MAIN OUT, 1 kHz, GAIN at min., +10 dBu)
<0.004 % (MIC IN-> MAIN OUT, 1 kHz, GAIN at min., +4 dBu)
Frequency response Analogue: 20 Hz to 30 kHz, +0.5/–1.0 dB
Digital: 20 Hz to 20 kHz, +0.5/–1.0 dB
Channel crosstalk –80 dB
(1 kHz, PAN fully counter-clockwise / fully clockwise)
Maximum gain 74 dB (MIC to MAIN OUT)
54 dB (MIC to INSERT OUT)
74 dB (MIC to SUB OUT)
79 dB (MIC to CR OUT)
75 dB (MIC to MONITOR OUT)
75 dB (MIC to FX OUT)
24 dB (USB/SD to MAIN OUT)
(all EQs flat, PAN fully counter-clockwise / fully clockwise, GAIN knobs at max.)
Phantom Power DC 48 V
Computer system requirements
Windows
Compatible computers Windows-compatible computer with a USB 2.0 (or higher) port
CPU type/speed Dual core, 2 GHz or faster
Memory 2 GB or more
Drivers USB Audio Class 2.0, ASIO 2.0, WDM (MME)
Screen resolution 1280 px × 800 px or more
Macintosh
Compatible computers Apple Mac computer with a USB 2.0 (or higher) port
CPU type/speed Dual core, 2 GHz or faster
Memory 2 GB or more
Driver Core Audio
Screen resolution 1280 px × 800 px or more
USB audio specifications
Sampling rate 44.1 kHz, 48 kHz
Bit depth 16 bit, 24 bit
Maximum number of audio channels 16 inputs, 14 outputs
Bluetooth® Version 5.0
Output class Class 2
(approximate transmission distance: 10 m)
* The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic disturbances.
Supported profile A2DP, AVRCP 1.0
Supported A2DP codecs SBC, AAC
A2DP content protection SCMS-T
Power supply and other specifications
Power AC 100–240 V, 50/60 Hz
Power consumption 40 W
Dimensions (W × D × H, overall) 430 mm × 463 mm × 113 mm
Weight 7 kg
Permissible operating temperature range 5–35 °C
Included items AC power cord, Owner’s manual incl. warranty
